These are the latest alcohol stoves designed by me, the Mutant X (MX) and Pressurized Jet Assisted (PJA) Alcohol Stoves. The MX is an improved open jet stove design to give better fuel efficiency and yet burns like pressurized jet alcohol stove. With the turbo base added, it cuts boiling time by half. These stoves have been tested and are made for  proper usage. If you have any quires, please send us email.

PRECAUTIONS

1. Use the stove in a ventilated area.
2. Store the alcohol either in a plastic or aluminium bottle. Do not use glass bottle as it might break in your pack. Best is to use a medicine bottle, they mostly come with markings.
3. Do not pour alcohol when the stove is still burning.
4. Alcohol burns invisible, to check if it still burning, use you hand and place above the stove at a distance to feel the heat.
5. Do not enlarge any holes of the stove, this action might cause the stove to explode
6. Keep the bottled alcohol away from the lighted stove.
7. Keep away from children and infant.

Before using the stove, you should have a bottle of alcohol with markings.

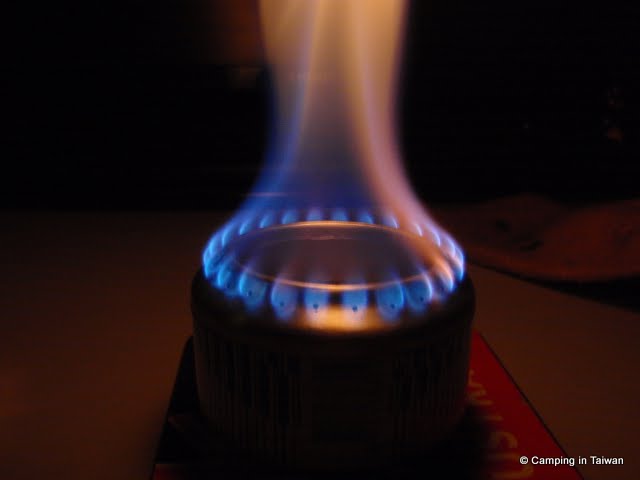

CiT MUTANT X (MX) ALCOHOL STOVE

Specification

size: 70 x 70 x 65mm

weight: 15gram

Max capacity: 60ml of alcohol

Material: Aluminium

CiT MUTANT X TURBO (MXT) ALCOHOL STOVE

Specification

size: 100 x 70 x 95mm

weight: 19gram

Max capacity: 60ml of alcohol

Material: Aluminium

CiT MUTANT X SUPPORT (MXS) ALCOHOL STOVE (20 Apr 2011)

The MXS Alcohol stove is designed for narrow pots such as Heineken Pot. The stove support can be configured for both wide and narrow pot. The Support can be removed from the stove for storage.

Specification

size: 90 x 70 x 65mm

weight: 28gram

Max capacity: 60ml of alcohol

Material: Aluminium / Steel

Boil time: ~8.30mins (400ml water)

Burn time: 18.30mins (40ml Alcohol)

CiT PRESSURIZED JET ASSISTED (PJA) ALCOHOL STOVE (DISCONTINUED)

Specification

size: 70 x 70 x 65mm

weight: 15gram

Max capacity: 40ml of alcohol

Material: Aluminium

I have since stop making this stove as I found out the MX version was better

STOVES CONSTRUCTION

All stoves are custom hand made, additional tools were purchased to ensure a better quality build, such as thumb nail is replaced with hobby craft drill, 3M fine sanding pad and steel wool to give the stoves mirror finishing, custom made tools and templates to ensure all stoves are equally built. Each stove construction requires 1.5 to 2 manhours.

Material and Tools Used

• Soda cans
• Hobby craft drill
• Marker pens
• Ruler
• Pliers
• Hole punch
• Custom scriber / cutter
• Heavy duty pen knife cutter
• Sand paper 2 different grades
• High temperature RTV silicon
• Flat head screw driver
• SOS pad
• Steel Wool
• Level gauge
• Custom templates
• Battery operated hand drill

CUTTING THE CANS

removing the inner rim of soda can

pierce 3 holes

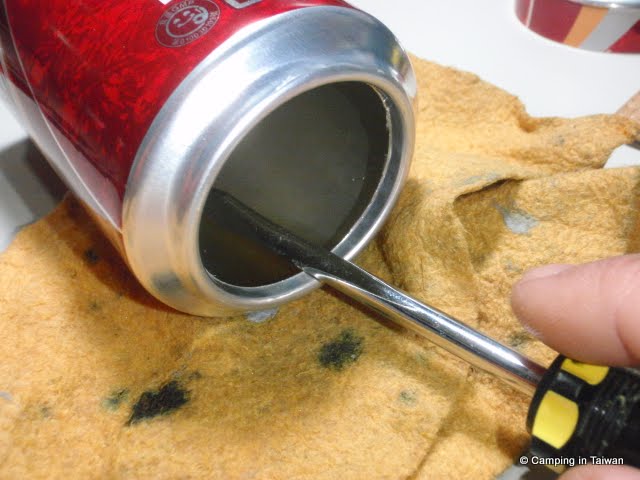

using a flat head screw driver

rounding off the edges

sand off rough edges

scribing around the can and creating a small slit

separating the can

smooth out rough edges

MAKING THE JETS

hobby craft drill

custom template for marking jet holes

drilling

DIFFUSER AND TURBO BASE

custom template marking

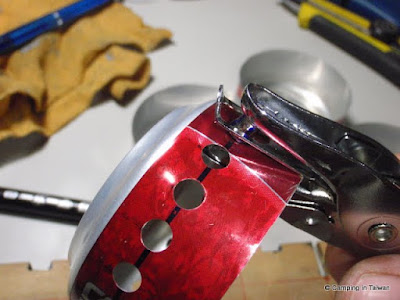

using hole punch

INNER CHAMBER

custom template for marking

PRE-ASSEMBLY

notches made with a pair of pliers

fitting test

SANDING

FINAL ASSEMBLY

high temp. RTV silicon used for all stoves

leveling the stove

final fitting

POLISHING AND TESTING

Final Product

a bag full of failures and success

Disclaimer: CiT will not be responsible to any user pertaining to the mishap of using the stoves.
